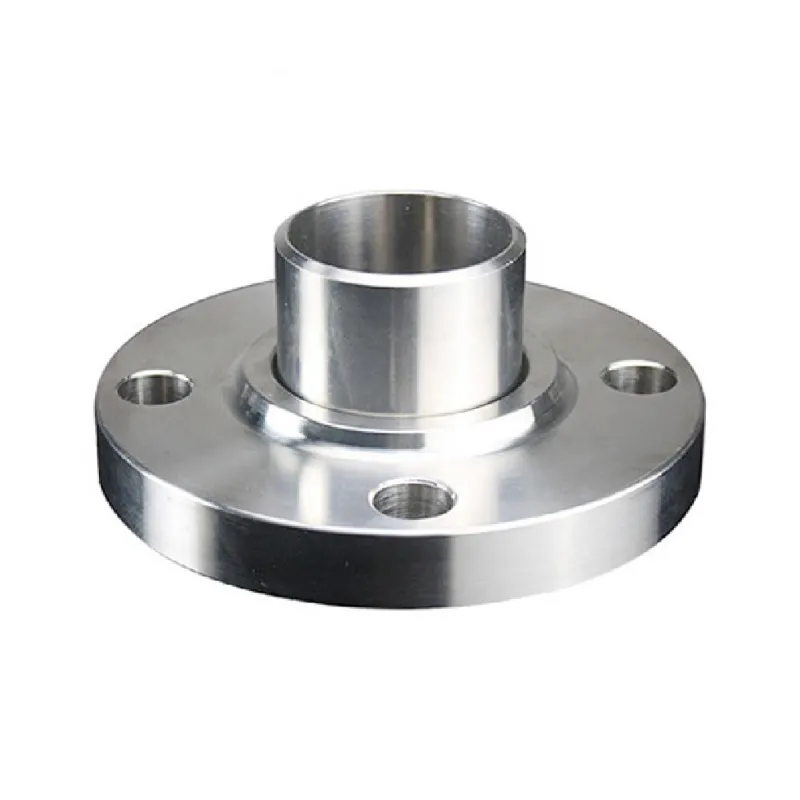

Lap Joint Flanges
Raj Industrials is a well-known supplier of LAP JOINT FLANGES in India. Lap Joint Flanges are similar to other types of industrial flanges, but they do not have a raised face and are used in conjunction with a Lap Joint Stub End. These flanges are ideal for piping systems that require regular dismantling for inspection and cleaning. They slip over the pipe without being welded or otherwise fastened, with bolting pressure transmitted to the gasket by the flange's pressure against the back of the pipe lap (Stub End).
The total initial cost of a lap joint flange along with a stub end is around one-third higher than that of comparable welding neck flanges. Despite this, the pressure holding capacity of lap joint flanges is comparatively lower, and the fatigue life for the assembly is only one-tenth that of welding neck flanges. However, they offer custom-made sizes and shapes to meet specific requirements. These flanges facilitate bolt alignment, making the erection of large diameter or unusually stiff piping easier.
Benefits of using Lap Joint Flanges include the freedom to swivel around the pipe, facilitating the alignment of opposing flange bolt holes. The lack of contact with the fluid in the pipe often permits the use of inexpensive carbon steel flanges with corrosion-resistant pipes. In systems that erode or corrode quickly, the flanges may be salvaged for reuse. Lap Joint Flanges are used in applications where frequent dismantling is required for inspection and cleaning, and where their ability to swivel and align bolt holes is advantageous.
Available for use at all pressures and in a full size range, these flanges are similar to slip-on flanges but have a curved radius at the bore and face to accommodate a lap joint stub end. Raj Industrials supplies high-quality Lap Joint Flanges that meet the highest industry standards, ensuring reliable and efficient performance in critical industrial applications.
